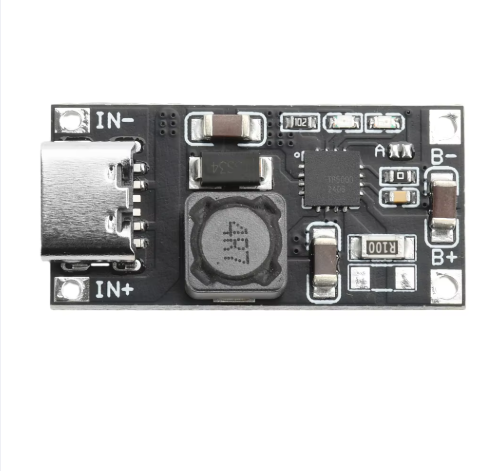

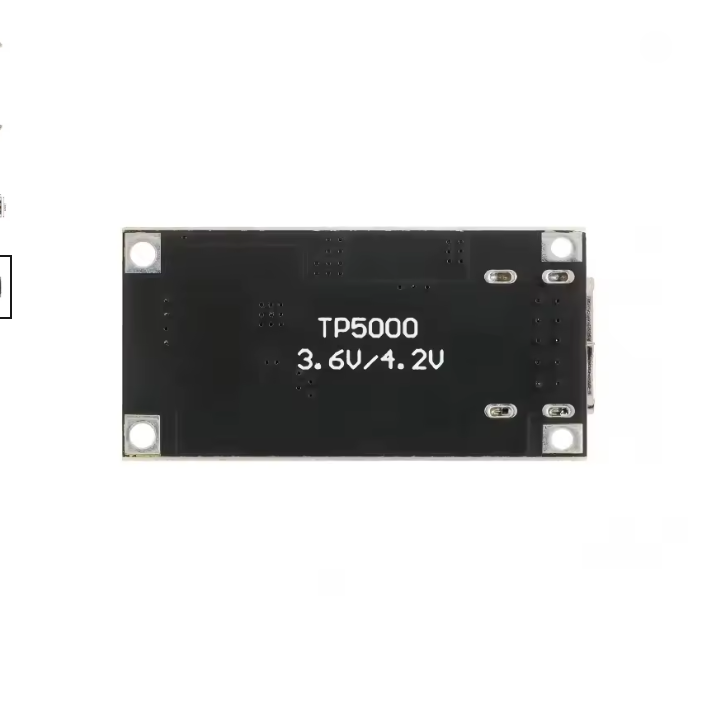

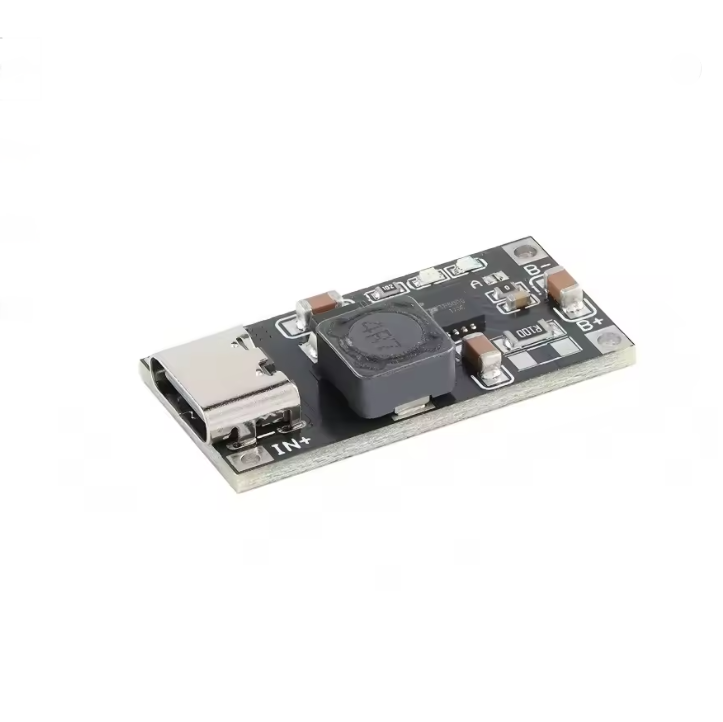

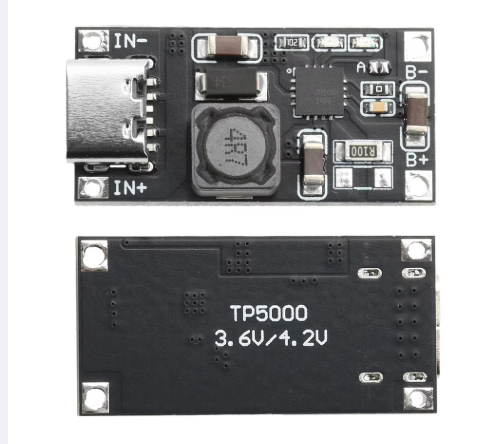

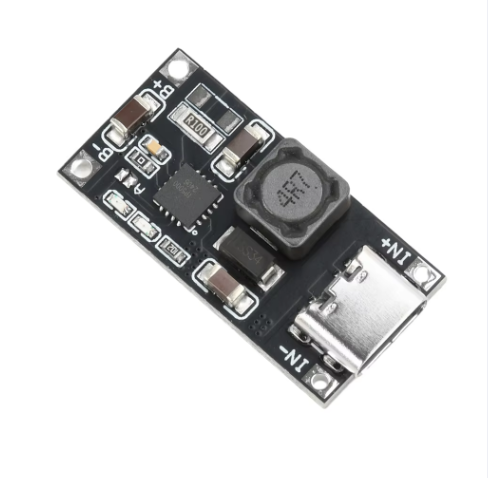

TP5000 4.2V/3.6V 2A Li-ion Charging Board Type C Interface DC 4.5-9V to 4.2V/3.6V Step Down Charger Module

৳290 ৳145

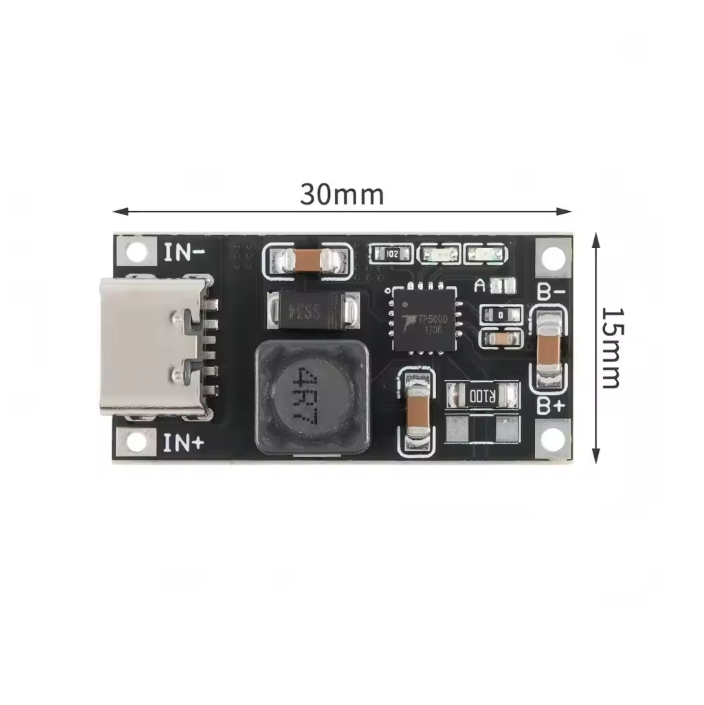

● Product name: TP5000 lithium charging board ● Input: DC 4.5-9V (recommended not to exceed 7V) ● Output voltage: 4.2V/3.6V, plus or minus 1% selection ● Output current: default 2A, can be customized 0.5-2A, greater than 1.5A need to add cooling ● Volume: 30mm*15mm*6mm, single side mount reflow soldering ● TP5000 lithium-ion , lithium phosphat Battery Charger

Product Code : P0630

Brand : N/A

- +
ঢাকার ভেতরে ৭০ টাকা
ঢাকার বাহিরে ১২০ টাকা

বিস্তারিত

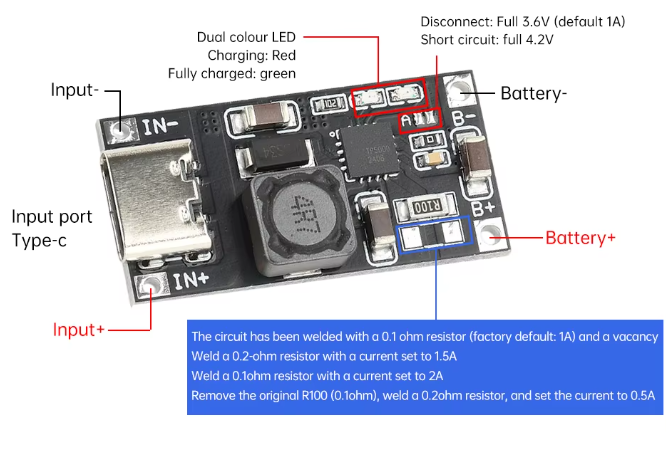

TP5000 lithium-ion , lithium phosphate , 2A current 4.2/3.6V, suitable for charging lithium-ion and lithium phosphate , full self-stop, red and green dual- indicator. Switching buck mode, higher efficiency than linear charging circuit, and much less heat. Charging current 2A, charging at constant current throughout the charge to maintain 2A, without additional heat dissipation, reducing the impact of heat on the charging current, reducing the charging time. Optional common lithium ion lithium polymer or lithium phosphate , only one is needed to change the setting.4 terminals, 2 inputs, 2 , another with inline LED soldering position.
